A sealed, vandal resistant pushbutton switch with momentary action - To provide durability & security. OTTO P8-V Pushbutton is available with customised options, to suit your specific operational needs. KEY FEATURES • 1 Million Cycle Life • Sealed: IP68S/IP69K/IP64 • RoHS/WEEE/Reach Compliant The OTTO P8-V Vandal Resistant Pushbutton Switches are perfect for door security systems, transit systems, emergency phones, traffic signals, industrial & process control.
OTTO P8-V VANDAL RESISTANT PUSHBUTTON SWITCH

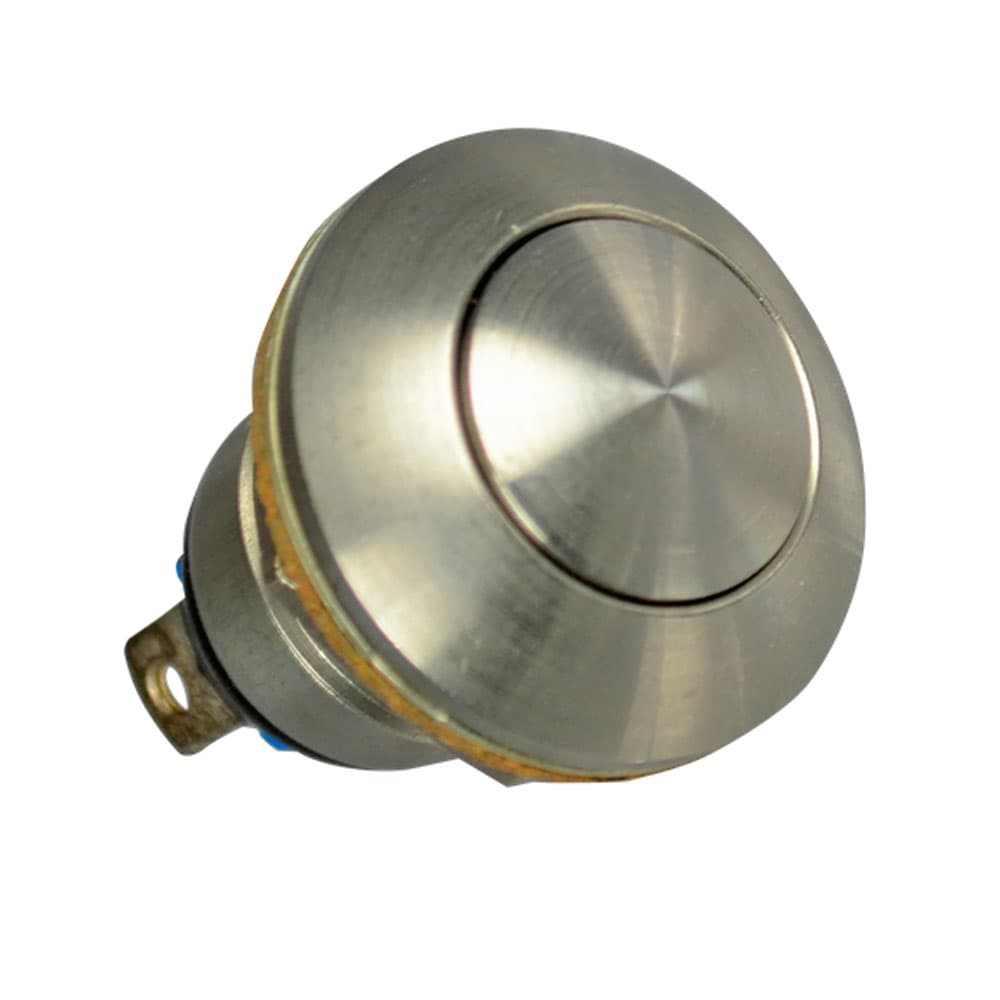

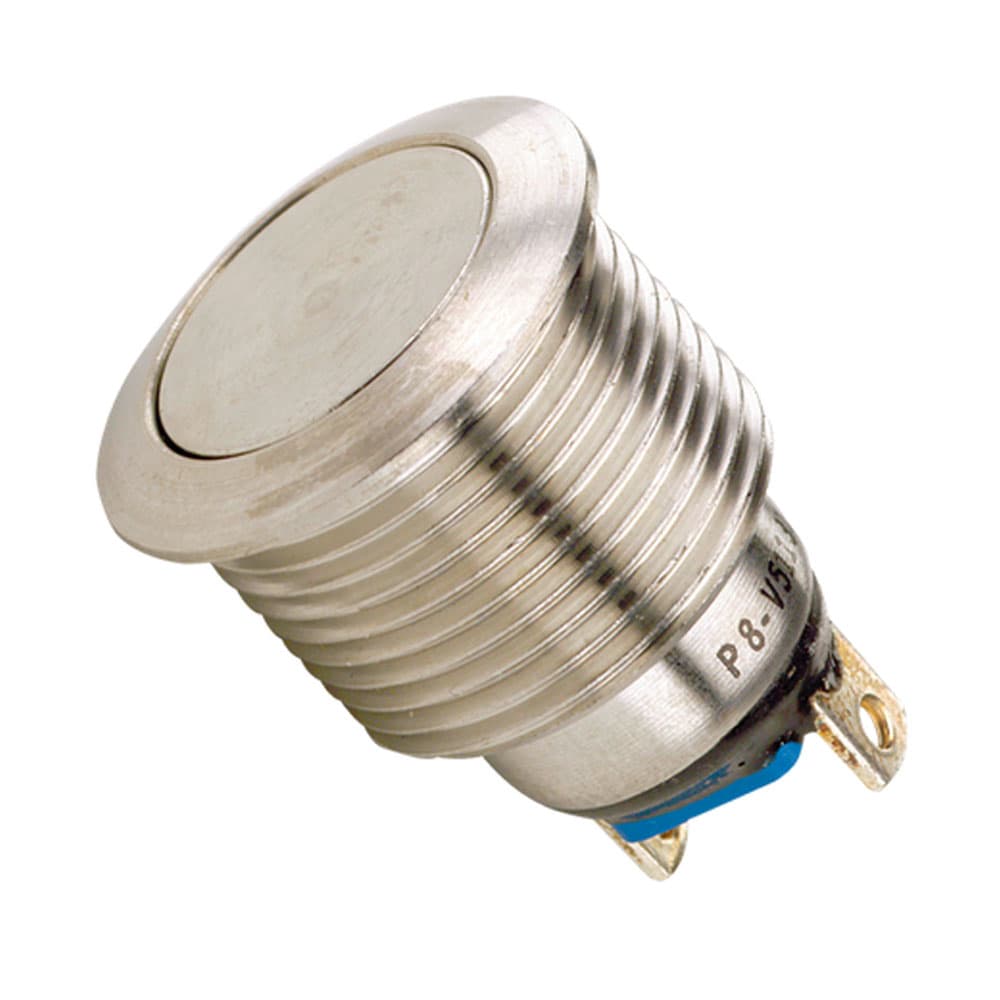

The OTTO P8-V Pushbutton are sealed, vandal resistant pushbutton switches with momentary action. Providing durability & security, available with customised options.
Features:
Stainless steel vandal resistant case
Aluminum security level case
Watertight to IP68S and IP69K or moistureproof & dusttight to IP64
Positive tactile feedback
Less than 25mΩ contact resistance

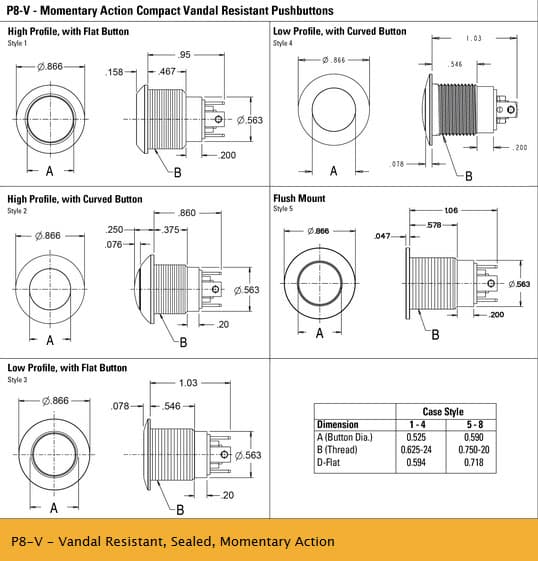

Variety of case and button styles available
Mechanical life 1 million cycles
UL recognized & CSA certified
UL1500 ignition protected
RoHS/WEEE/Reach compliant

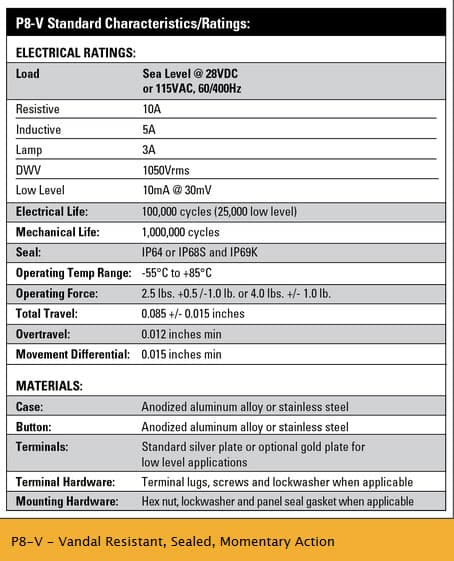

Specifications:
Electrical Rating: Sea Level @ 28VDC or 115VAC, 60/400Hz
Resistive: 10A/Inductive: 5A/Lamp: 3A
DWV: 1050Vrms
Low Level 10mA @ 30mV
Electrical Life: 100,000 cycles (25,000 low level)
Mechanical Life: 1,000,000 cycles
Seal: IP64 or IP68S and IP69K
Operating Temp Range: -55°C to +85°C
Operating Force: 2.5 lbs. +0.5 /-1.0 lb. or 4.0 lbs. +/- 1.0 lb
Total Travel: 0.085 +/- 0.015 inches
Overtravel: 0.012 inches min
Movement Differential: 0.015 inches min
Materials:
Case: Anodized aluminum alloy or stainless steel
Button: Anodized aluminum alloy or stainless steel
Terminals: Standard silver plate or optional gold plate for low level applications
Terminal Hardware: Terminal lugs, screws and lockwasher when applicable
Mounting Hardware: Hex nut, lockwasher and panel seal gasket when applicable
