OTTO P5-V Range of Sealed, Alternate Action Pushbutton Switches are Vandal Resistant, providing mixed function with a uniform look. Alternate action delivers a on/off action, returning to the original position after actuation. KEY FEATURES • 1 Million Life Cycle • Sealed or Unsealed • Low Resistance OTTO P5-V Pushbutton offers excellent in performance - Available with a range of customised options, ideal to suit a variety of operation requirements.
OTTO P5-V VANDAL RESISTANT, SEALED, PUSHBUTTON SWITCHES
The OTTO P5-V Pushbutton Switches offer a range of Alternate Action, Vandal Resistant Pushbutton Switches to provide mixed functions with a uniform look.
Features:
Security (aluminum) or vandal resistant (stainless steel) case & button
Button sealed with patented “rolling sleeve” design
Contact area sealed at case & terminals
Watertight to IP68S and IP69K or dusttight & moistureproof to IP64
Less than 25mΩ contact resistance
Handles low level up to 10 amps
1 million mechanical cycle life
RoHS, Reach & WEEE Compliant

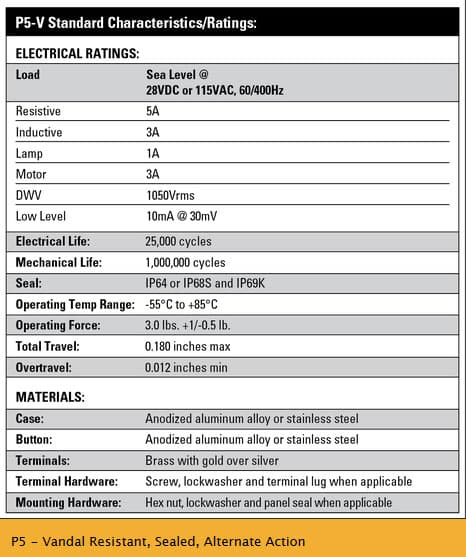

Specifications:
Electrical Ratings: Load Sea Level @ 28VDC or 115VAC, 60/400Hz
Resistive 5A/Inductive 3A/Lamp 1A/Motor 3A
DWV: 1050Vrms
Low Level: 10mA @ 30mV
Electrical Life: 25,000 cycles
Mechanical Life: 1,000,000 cycles
Seal: IP64 or IP68S and IP69K
Operating Temp Range: -55°C to +85°C
Operating Force: 3.0 lbs. +1/-0.5 lb
Total Travel: 0.180 inches max
Overtravel: 0.012 inches min
Materials:
Case: Anodized aluminum alloy or stainless steel
Button: Anodized aluminum alloy or stainless steel
Terminals: Brass with gold over silver
Terminal Hardware: Screw, lockwasher and terminal lug when applicable
Mounting Hardware: Hex nut, lockwasher and panel seal when applicable
