U2-169 Details

The OTTO Two-Step Trigger Switches are rated 7 amps resistive at 28VDC with 2-step action. This OTTO 2-Step Trigger Switch has an actuating force of 2.25lbs to make the first pole; 6.5lbs is required to pass through the detent & 6.0lbs to continue travel, after the detent. KEY FEATURES • 50,000 Life Cycle • Two-Step Trigger Switch • Rated 7 amps Resistive @ 28VDC OTTO U2-169 Trigger Switch has an impressive 50,000 electrical life cycle.

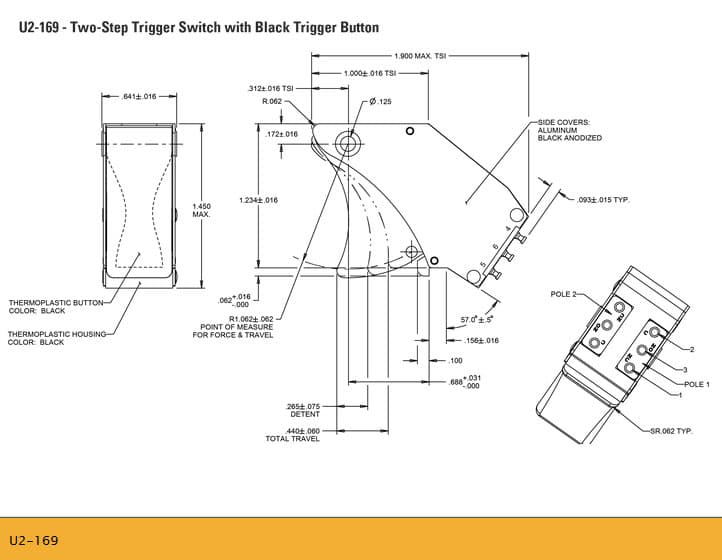

OTTO U2-169 TRIGGER SWITCHES

Theses OTTO U2 Trigger Switches are rated 7 amps resistive at 28VDC with 2-step action.

Highly durable, the OTTO 2-Step Trigger Switches provide an impressive 50,000 electrical life cycle.

Features:

Two-Step Trigger
Actuating force of 2.25 lbs. to make the first pole
Additional force of 6.5 lbs. passing through a detent to actuate the second pole
0.641" +/- 0.016" width
Rated 7 amps resistive @ 28VDC
Electrical life 50,000 cycles

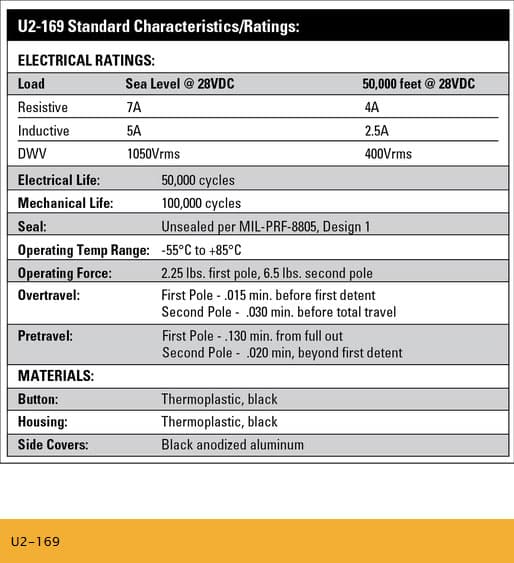

Specifications:

Electrical Rating: Sea Level @ 28VDC or 70,000 Feet @ 28DVC
Resistive: 7A/4A
Inductive: 5A/2.5A
DWV: 1050Vrms/400Vrms
Electrical Life: 50,000 Cycles
Mechanical Life: 100,000 Cycles
Seal: Unsealed per MIL-PRF-8805 - Design 1
Operating Temp Range: -55°c to +85°c
Operating Force: 2.25lbs First Pole, 6.5lbs Second Pole
Overtravel: First Pole - .015 min (Before First Detent)
Over Travel: Second Pole - .030 min (Before Total Travel)
Pretravel: First Pole - .130 min (From Fallout)
Pretravel: Second Pole - .020 min (Beyond First Detent)

Materials:

Button: Thermoplastic, Black
Housing: Thermoplastic, Black
Side Covers: Black Anodized Aluminum
