U2-082 Details

OTTO M8805/111-03 Trigger Switch is a precision Trigger Switch with a width of 0.641" +/- 0.016" suitable for heavy use. Military qualified to M8805/111-03 the OTTO U2 Trigger Switch offers an impressive electrical life cycle of 50,000. KEY FEATURES • 50,000 Life Cycle • RoHS/WEEE/Reach Compliant • 7 Amps Resistive @ 28VDC The OTTO 2-step Trigger Switch has an actuating force of 2.25lbs to make the first pole; 6.5lbs passing through a detent, to actuate the second pole.


OTTO U2-082 TRIGGER SWITCHES

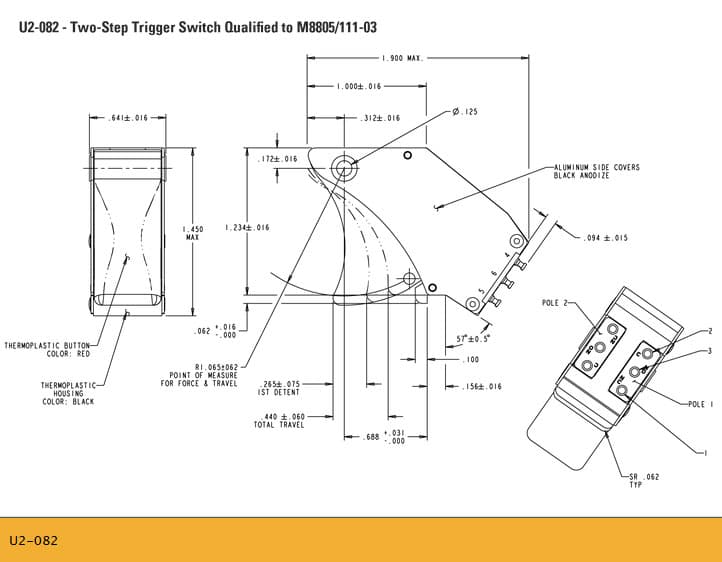

The OTTO Trigger Switch is a precision Trigger Switch with a width of 0.641" +/- 0.016" suitable for heavy use and Military qualified to M8805/111-03>.

Offering an impressive electrical life cycle of 50,000 the OTTO U2 Trigger Switch is suitable for a variety of applications.

Features:

Two-Step Trigger
Qualified to M8805/111-03
Rated 7 amps resistive @ 28VDC

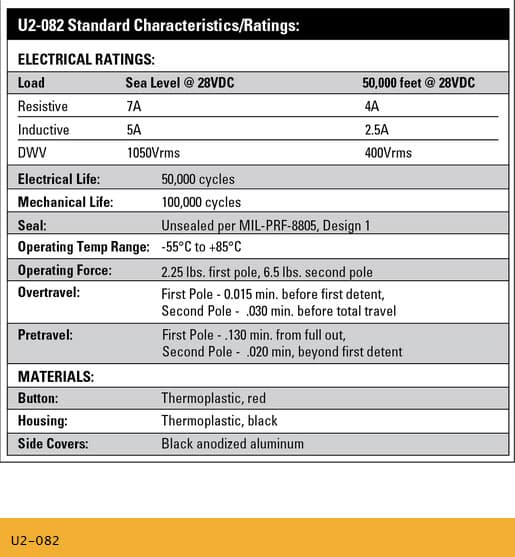

Specifications:

Electrical Rating: Sea Level @ 28VDC or 50,000 Feet @ 28DVC
Resistive: 7A/4A
Inductive: 5A/2.5A
DWV: 1050Vrms/400Vrms
Electrical Life: 50,000 Cycles
Mechanical Life: 100,000 Cycles
Seal: Unselaed per MIL-PRF-8805 - Design 1
Operating Temp Range: -55°c to +85°c
Operating Force: 2.25lbs First Pole, 6.5lbs Second Pole
Overtravel: First Pole - 0.015 min (Before First Detent)
Over Travel: Second Pole - .030 min (Before Total Travel)
Pretravel: First Pole - .130 min (From Fallout)
Pretravel: Second Pole - .020 min (Beyond First Detent)

Materials:

Button: Thermoplastic, Red
Housing: Thermoplastic, Black
Side Covers: Black Anodized Aluminum
