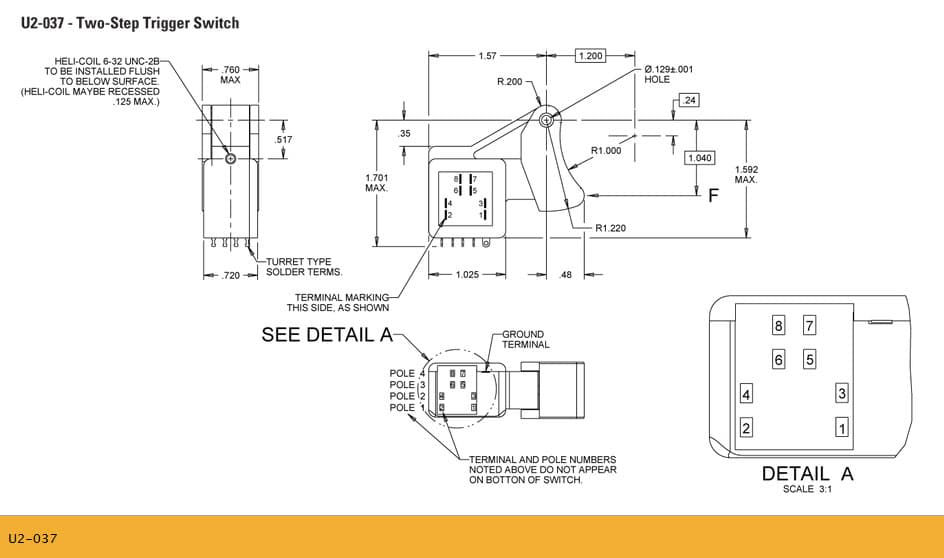

U2-037 Details

The OTTO Trigger Switch is a 2-step Trigger Switch providing 2 levels of operation. Featuring an actuating force of 3.0lbs to makes the first pole & an additional 5.0lbs to actuate the second pole. KEY FEATURES • Precision Trigger Switch • 50,000 Life Cycle • Rated 8 amps Resistive @ 28VDC OTTO U2-037 Trigger Switches are suitable for a range of applications & offers magnetic pulse shielding. * Featuring OTTO B3 basic switches per MIL-PRF-8805.


OTTO U2-037 TRIGGER SWITCHES

The OTTO U2 Trigger Switch is a 2-step Trigger Switch, suitable for a range of applications providing 2 levels of operation.

Featuring an actuating force of 3.0lbs to makes the first pole & an additional 5.0lbs to actuate the second pole. The OTTO Trigger Switch also offers magnetic pulse shielding.

Features:

Two-step trigger
Dusttight per MIL-PRF-8805, Design 2
Positive detent between levels of operation
Actuating force of 3.0 lbs. to make the first pole
Additional force of 5.0 lbs. to make the second pole
Rated 8 amps resistive @ 28VDC
Electrical life 50,000 cycles

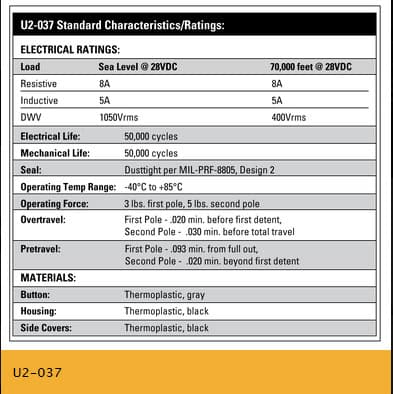

Specifications:

Electrical Rating: Sea Level @ 28VDC or 70,000 Feet @ 28DVC
Resistive: 8A/8A
Inductive: 5A/5A
DWV: 1050Vrms/400Vrms
Electrical Life: 50,000 Cycles
Mechanical Life: 50,000 Cycles
Seal: Dusttight per MIL-PRF-8805 - Design 2
Operating Temp Range: -40°c to +85°c
Operating Force: 3lbs First Pole, 5lbs Second Pole
Overtravel: First Pole - .020 min (Before First Detent)
Over Travel: Second Pole - .030 min (Before Total Travel)
Pretravel: First Pole - .093 min (From Fallout)
Pretravel: Second Pole - .020 min (Beyond First Detent)

Materials:

Button: Thermoplastic, Grey
Housing: Thermoplastic, Black
Side Covers: Thermoplastic, Black
