U2-016 Details

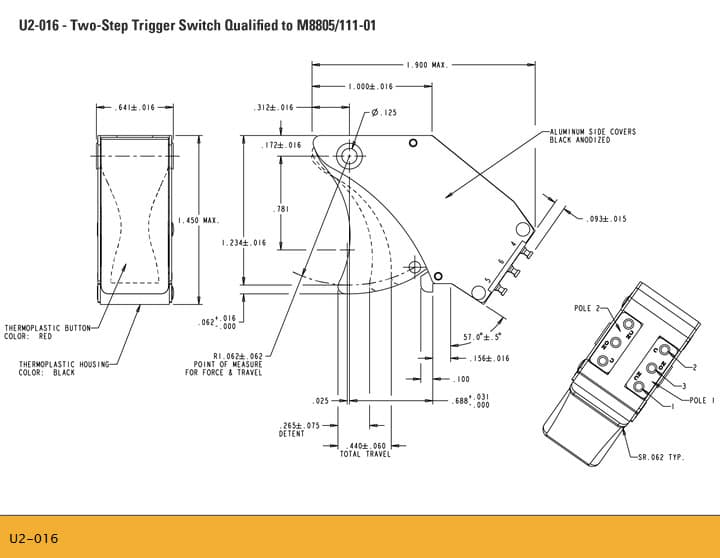

OTTO U2-016 Trigger Switches are 2 step trigger switches, with a width of .641" and military qualified to M8805/111-01. With an actuating force of 2.25 lbs to make the first pole; 6.5 lbs is required to pass through the detent & 6.0 lbs to continue travel after the detent. KEY FEATURES • 50,000 Life Cycle • Precision Trigger • Rated 7 amps Resistive @ 28VDC OTTO U2 Trigger Switches are suitable for a variety of applications, available with a range of custom options.


OTTO U2-016 TRIGGER SWITCHES

The OTTO U2 Trigger Switches are 2 step trigger switches, suitable for a variety of applications, available with a range of custom options.

This high quality range of OTTO Trigger Switches provides an actuating force of 2.25 lbs to make the first pole; 6.5 lbs is
required to pass through the detent & 6.0 lbs to continue travel
after the detent.

Features:

Two-Step Trigger
Qualified to M8805/111-01
Actuating force of 2.25 lbs to make the first pole
Rated: 7 amps resistive @ 28VDC
Electrical life: 50,000 cycles

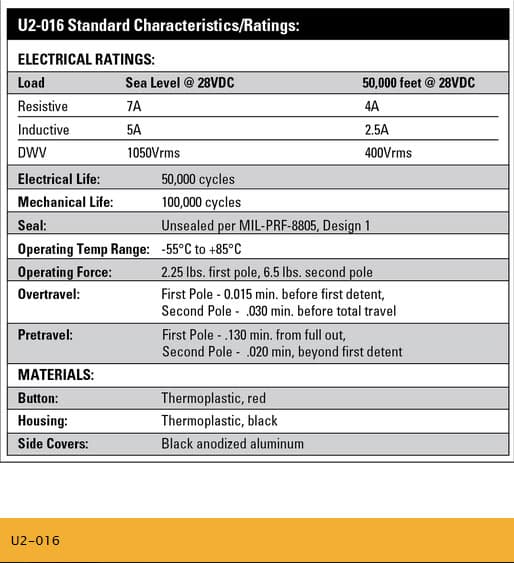

Specifications:

Electrical Ratings: Sea Level @ 28VDC or 50,000 Feet @ 28VDC
Resistive: 7A/4A
Inductive: 5A/2.5A
DWV: 1050Vrms/400Vrms
Electrical Life: 50,000 cycles
Mechanical Life: 1000,000 cycles
Seal: Unsealed per MIL-PRF-8805 Design 1
Operating Temp Range: -55°c to +85°c
Operating Force: 2.25lbs first pole - 6.5lbs second pole
Overtravel: First Pole - 0.015 min before first detent
Overtravel: Second Pole - .030 min before total travel
Pretravel: First Pole - .130 from full out
Pretravel: Second Pole - .020 min beyond first detent

Materials:

Button: Thermoplastic, Red
Housing: Thermoplastic, Black
Side Covers: Black Anodized Aluminum
