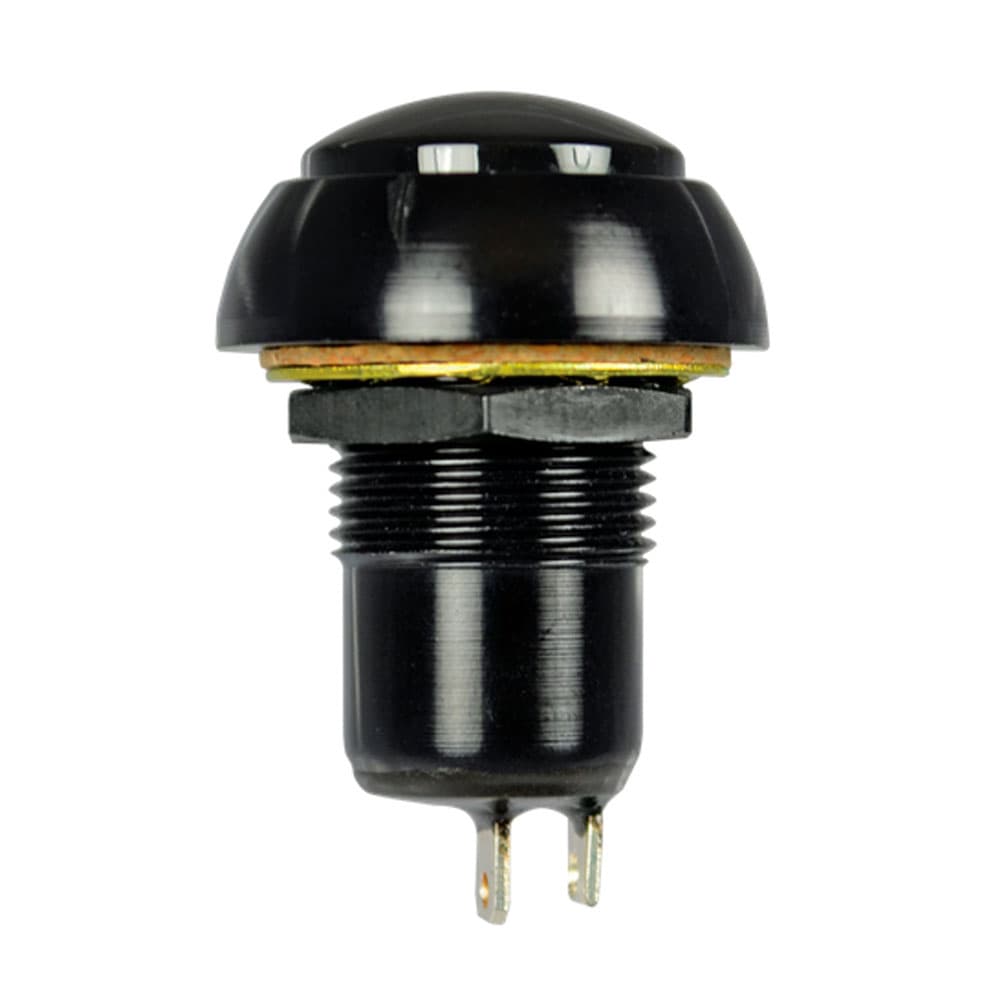

OTTO P5-D - DOMED STYLE, SEALED, MIL GRADE PUSHBUTTON SIWTCHES
The OTTO P5-D Sealed Alternate Action Pushbutton Switches are military grade, offering mixed functions with a uniform panel appearance - Perfect to suit a variety of
requirements.
Features:
2 contoured button styles
Button sealed with patented “rolling sleeve” principle
Contact area sealed at case & terminals
Less than 25mΩ contact resistance
Handles low level up to 10 amps
Moistureproof & dusttight to IP64 & MIL-PRF-8805 Design 2 or watertight to IP68S options
Unsealed construction also available
RoHS/WEEE/Reach compliant

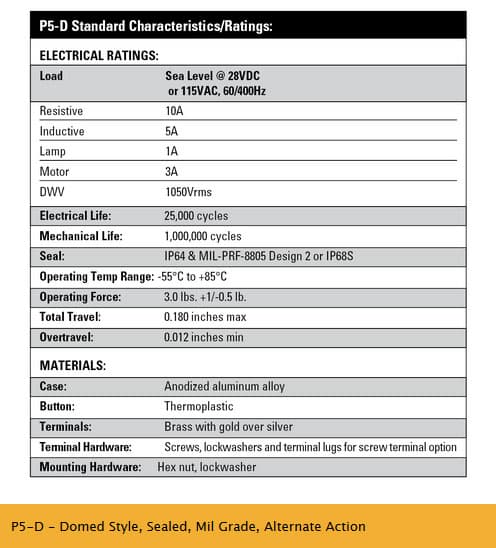

Specifications:
Electrical Ratings: Load Sea Level @ 28VDC or 115VAC, 60/400Hz
Resistive 10A/Inductive 5A/Lamp 1A/Motor 3A
DWV: 1050Vrms
Electrical Life: 25,000 cycles
Mechanical Life: 1,000,000 cycles
Seal: IP64 & MIL-PRF-8805 Design 2 or IP68S
Operating Temp Range: -55°C to +85°C
Operating Force: 3.0 lbs. +1/-0.5 lb
Total Travel: 0.180 inches max
Overtravel: 0.012 inches min
Materials:
Case: Anodized aluminum alloy
Button: Thermoplastic
Terminals: Brass with gold over silver
Terminal Hardware: Screws, lockwashers and terminal lugs for screw terminal option Mounting Hardware: Hex nut, lockwasher
