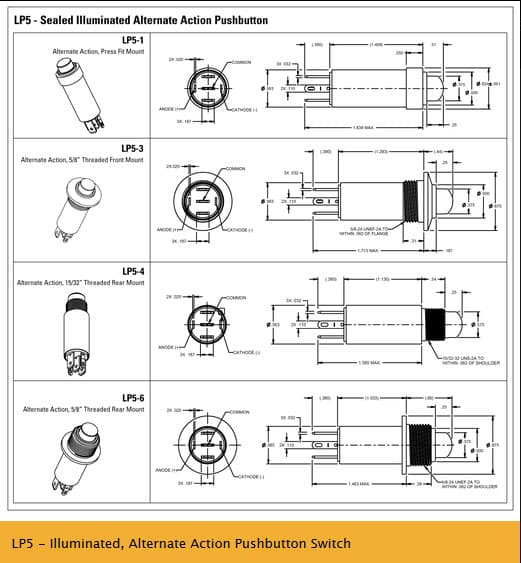

OTTO LP5 PUSHBUTTON SWITCHES

The OTTO LP5 Snap-Action Pushbutton Switches, offers an illuminated, alternate action or momentary action switching - Ideal for 'On'/'Off operations.

Features:

Watertight to IP68S; moisture proof & dust tight to IP64
LED lighted with the ability to accommodate 2, 6, 12 & 24VDC power & includes reverse voltage protection
Tall & dome style buttons in a range of colours & pad printed legends
Less than 25mΩ contact resistance
Quick disconnect terminals
15/32” & 5/8” thread, press fit & dome case options
RoHS/WEEE/Reach compliant

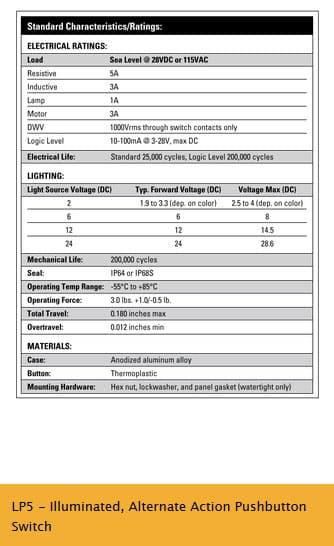

Specifications:

Electrical Ratings: Load - Sea Level @ 28VDC or 115VAC
Resistive 5A/Inductive 3A/Lamp 1A/Motor 3A
DWV: 1000Vrms through switch contacts only
Logic Level: 10-100mA @ 3-28V, max DC
Electrical Life:  Standard 25,000 cycles, Logic Level 200,000 cycles
Light Source Voltage (DC): 2, 6, 12, 24
Typ. Forward Voltage (DC): 1.9 to 3.3, 6, 12, 24
Voltage Max (DC): 2.5 to 4, 8, 14.5, 28.6
Mechanical Life:  200,000 cycles
Seal:  IP64 or IP68S
Operating Temp Range: -55°C to +85°C
Operating Force:  3.0 lbs. +1.0/-0.5 lb
Total Travel:  0.180 inches max
Overtravel:  0.012 inches min

Materials:

Case:  Anodized aluminum alloy
Button:  Thermoplastic
Mounting Hardware: Hex nut, lockwasher, and panel gasket (watertight only)
