HP7-DF23321 Details

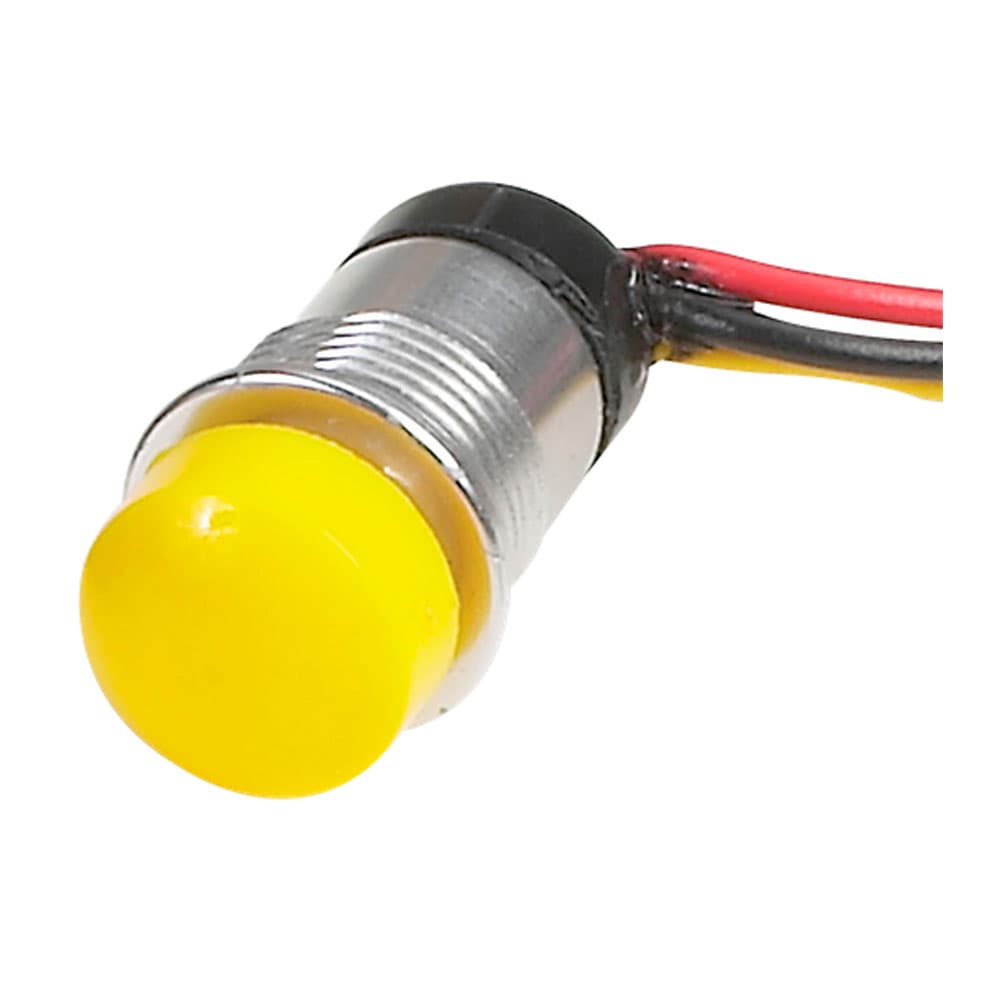

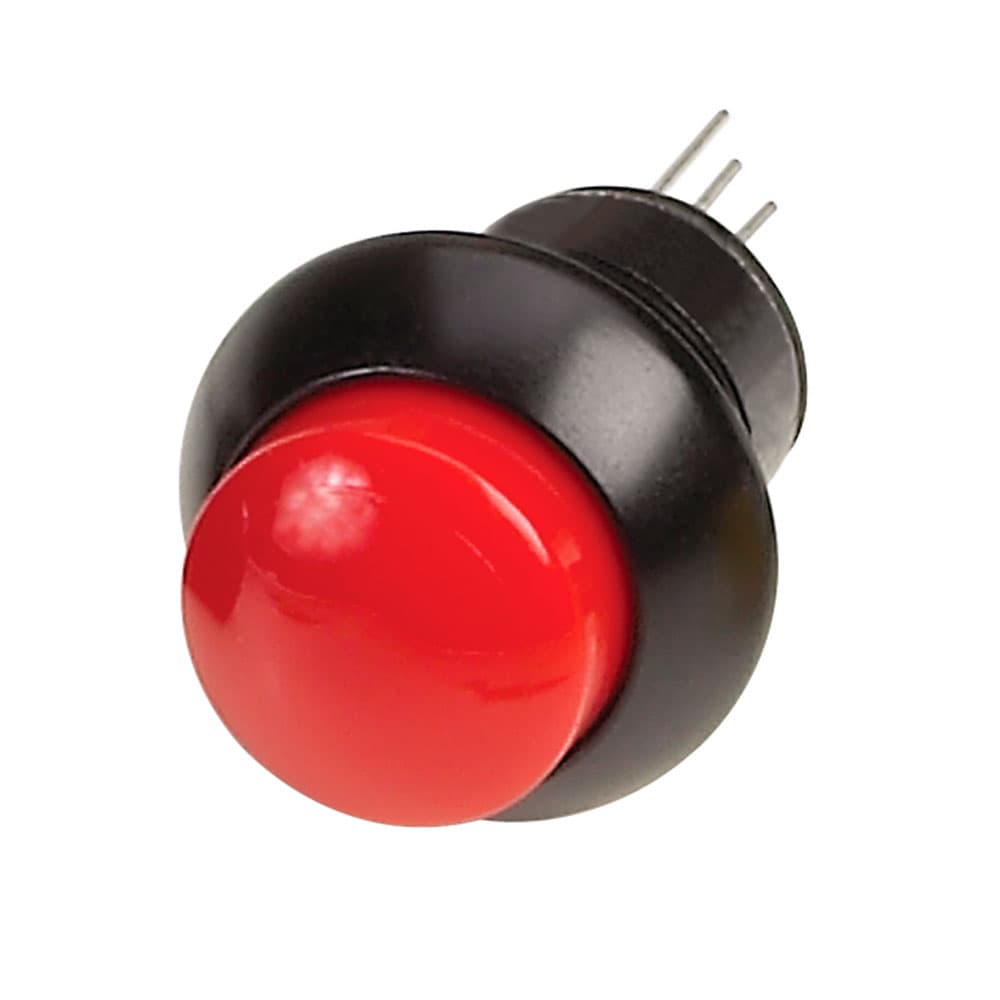

Designed to provide long life, contactless switching - This sealed Push Button Switch is able to withstand harsh environments. OTTO HP7 Hall Effect Push Buttons are perfect for repeated 'jogging', KEY FEATURES • 10 Million Cycles • Sealed: IP64 • Choice of Termination Styles & Caps The OTTO Hall Effect Push Button Switch (HP7-DF23321) has a flush dome switch, with high momentary action - Ideal for material handling equipment.



OTTO HP7 HALL EFFECT PUSHBUTTON SWITCHES

The OTTO HP7 Hall Effect Push Buttons are perfect for repeated 'jogging' actions

Features:

Mechanical Life: 10,000,000 Cycles without Detent
Button Travel: 0.08 Inches (Max)
Overtravel: 0.010 Inches (Min)
Operating Force without Detent: 16oz - +/- 8oz
Operating Force with Detent: 28oz - +/- 8oz

Specifications:

Supply Voltage: 3.0 - 24 VDC (Max)
Reverse Output Voltage: 0.5 VDC
Supply Current: 9mA
Continuous Output Current: 10mA
Reverse Battery Protection: -15 VDC
Seal: IP64 or IP68S
Operating Temp: -40°c to +85°c
Storage Temp: -60°c  to +105°c

Materials:

Button: Thermoplastic
Case: Aluminum Alloy
Mounting Hardware: Hex Nut & Lockwasher
