HPL-3322212 Details

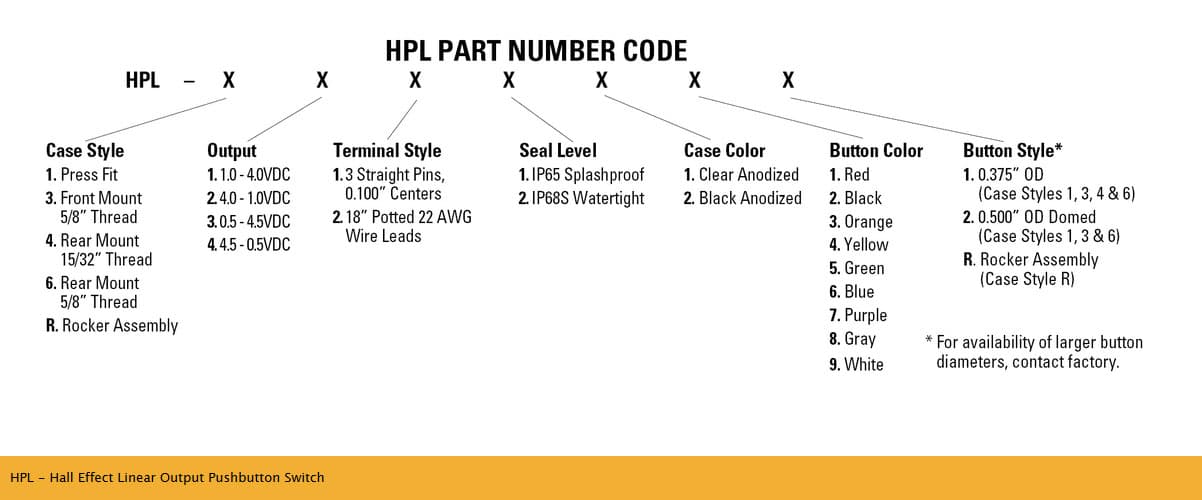

A Linear Push Button Switch with Hall Effect technology, with a proportional output - Great for where simple on/off control is insufficient. The OTTO HPL Push Button Switches are ideal for control devices & industrial applications. KEY FEATURES • 10 Million Cycles • 0.5 - 4.5 Volts • Contactless Switching The OTTO Linear Hall Effect Push Button Switches (HPL-3322212) come with a choice of terminations, sealings, cases, button styles & colour options.


OTTO HPL HALL EFFECT PUSHBUTTON SWITCHES


The OTTO HPL Push Button Switch with Hall Effect technology, offers a proportional output - Ideal where simple on/off control is insufficient.

Features:

Mechanical Life: 1,000,000 IP68S Rated or 10,000,000 IP64 Rated
Button Travel: 0.135 Inches to 0.160 Inches (Max)
Full Travel Force: 0.15 Inches, 3.0lbs - Typical to 3.8lbs, max @ 25°c
Reset Force: 5oz Min @ 25°c

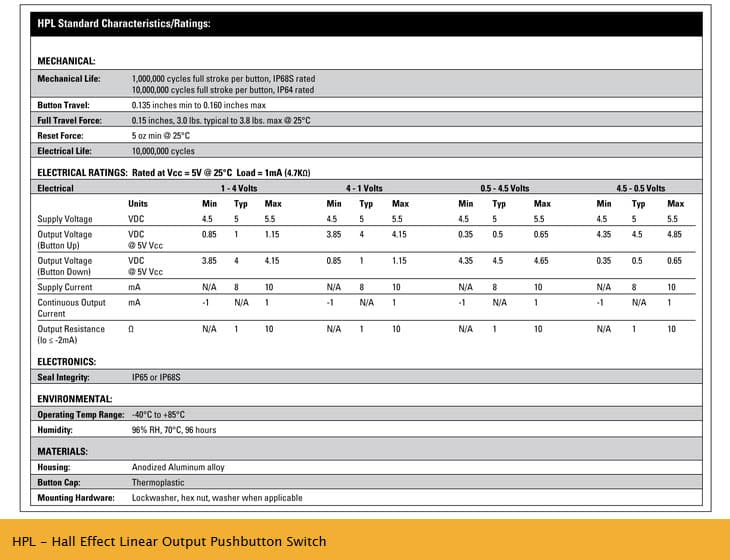

Specifications:

Rated at Vcc = 5V @ 25°c Load = 1mA (4.7)
Supply Voltage: 4.5 - 5.5 VDC (Max)
Output Voltage Button Up: 0.85 - 4.85 VDC (Max)
Output Voltage Button Down: 0.85 - 4.65 VDC (Max)
Supply Current: 8mA - 10mA
Continuous Output Current: -1 - 1mA
Output Resistance: 10 Max
Operating Temp: -40°c to +85°c
Sealed to IP68S or IP65
Humidity: 96% RH, 70°c, 96 Hours

Materials:

Housing: Anodized Aluminum Alloy
Button Cap: Thermoplastic
Mounting Hardware: Hex Nut & Lockwasher (Washer when Applicable)
