A quality range of 4-Way Finger Joysticks, suitable for control handles, armrests & panels for improved stability. The OTTO HTL4 Finger Joystick is a Linear Hall Effect Joystick with programmable sensors & built-in temperature compensation - Ensuring consistent operation. KEY FEATURES • 1 Million Cycles • Watertight: IP68S • Immune to frequency interference up to 100V/M. OTTO Linear Hall Effect Joysticks offer a variety of button choices & output configurations.
OTTO HTL4 4-WAY LINEAR HALL EFFECT FINGER JOYSTICK
These are Linear Hall Effect Joysticks with
programmable sensors & built-in temperature compensation. The
OTTO HTL4 Finger Joystick ensure consistent operation.
Features:
Designed for grip, armrest & panel mounting
Proven contactless analog output Hall effect technology
Redundant outputs available
1 million cycles
Electronics watertight to IP68S
Outstanding EMI/RFI immunity

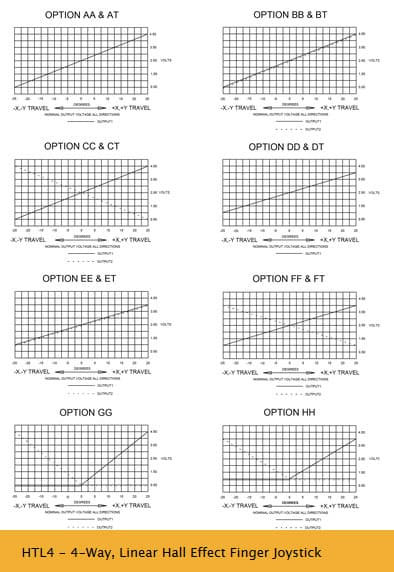

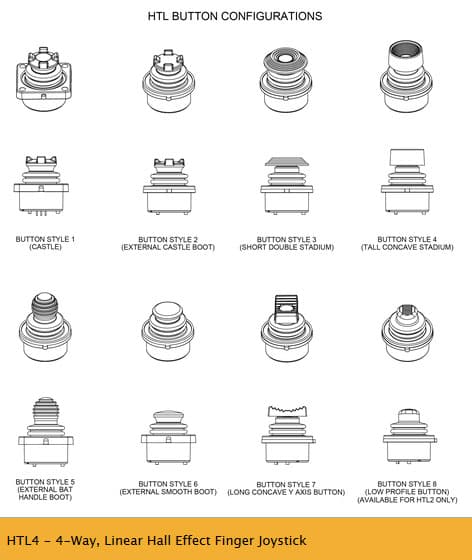

Variety of button styles
Tighter center tolerance options
RoHS/WEEE/Reach compliant

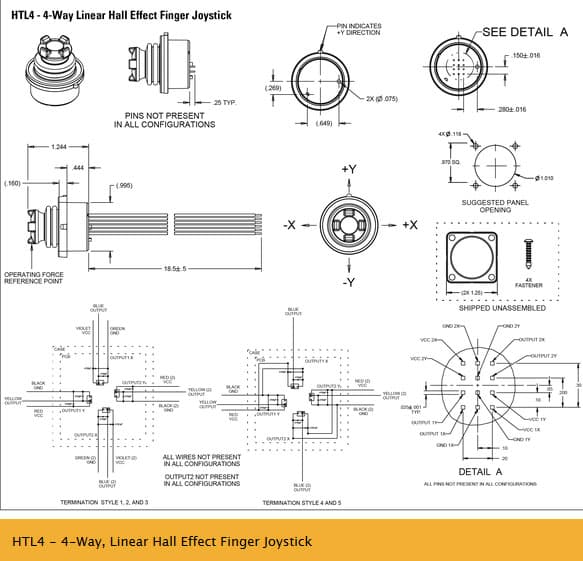

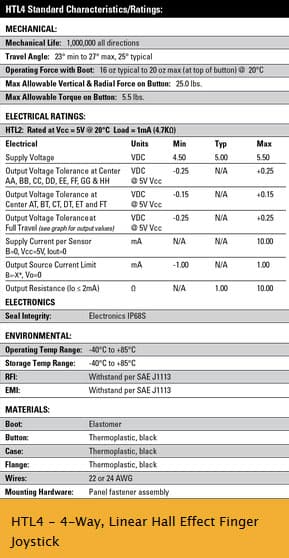

Specifications:
Mechanical Life: 1,000,000 all directions
Travel Angle: 23° min to 27° max, 25° typical
Operating Force with Boot: 16 oz typical to 20 oz max (at top of button) @ 20°C
Max Allowable Vertical & Radial Force on Button: 25.0 lbs
Max Allowable Torque on Button about Shaft Axis: 5.5 lbs
HTL4: Rated at Vcc = 5V @ 20°C Load = 1mA (4.7KΩ)
Supply Voltage: VDC Units - 4.50 Min/5.00 Typ/5.50 Max
Output Voltage Tolerance at Center: VDC Units -0.25 Min/ +0.25 Max
Output Voltage Tolerance at Center: VDC Units -0.15 Min/ +0.15 Max
Output Voltage Tolerance at Full Travel: VDC Units -0.25 Min/ +0.25 Max
Supply Current per Sensor: mA - 10.00 Max
Output Source Current Limit: mA -1.00 to 1.00 Max
Output Resistance (lo ≤ 2mA): -1.00 to 1.00 Max
Seal Integrity: Electronics IP68S
Operating Temp Range: -40°C to +85°C
Storage Temp Range: -40°C to +85°C
RFI: Withstand per SAE J1113
EMI: Withstand per SAE J1113
Materials:
Boot: Elastomer
Button: Thermoplastic, black
Case: Thermoplastic, black
Flange: Thermoplastic, black Wires: 22 or 24 AWG
Mounting Hardware: Panel fastener assembly
